125KHz / 13.56MHz Frequency NFC Smart Card Reader Writer
RFID Copier / RFID Reader / RFID Writer / RFID Duplicator
Product Features
1) Compliant with CCID
2) Compliant with PC/SC
3) Support IC/ID dual frequency replication
4) Driver-free, no need to download software installation
5) When connect the RFID Reader to the computer with the USB cable, then can find the software.
6) Support ID125K, 8800, 5200, 4305, 5577, 8265 card.
7) Support UID FUID CUID UFUID IC semi-encrypted card, IC full encryption card.
8) Has USB full speed interface
9) Two-color LED light prompt (red light is standby, green is working)
10) Built-in buzzer “beep” sound reminder
Product Parameters:
Dimensions: 108 (L) X 68 (W) X 12 mm (H)
Interface: USB full speed
Working Voltage: 5 V DC
Working current: 200mA
Standby current: 50mA
Normal current: 100mA
Working frequency: 125KHz / 13.56 MHz
Smart card support: for 125KHz ID type: EM4100, TK4100, 8800, 5200, EM4305, T5577, 8265 etc.
For 13.56MHz IC type: UID FUID CUID UFUID IC Half-encryption, IC Full-encryption etc.
Supported operating systems: SupportWindows computer. Not support Linux, Mac.
How to use the card reader?

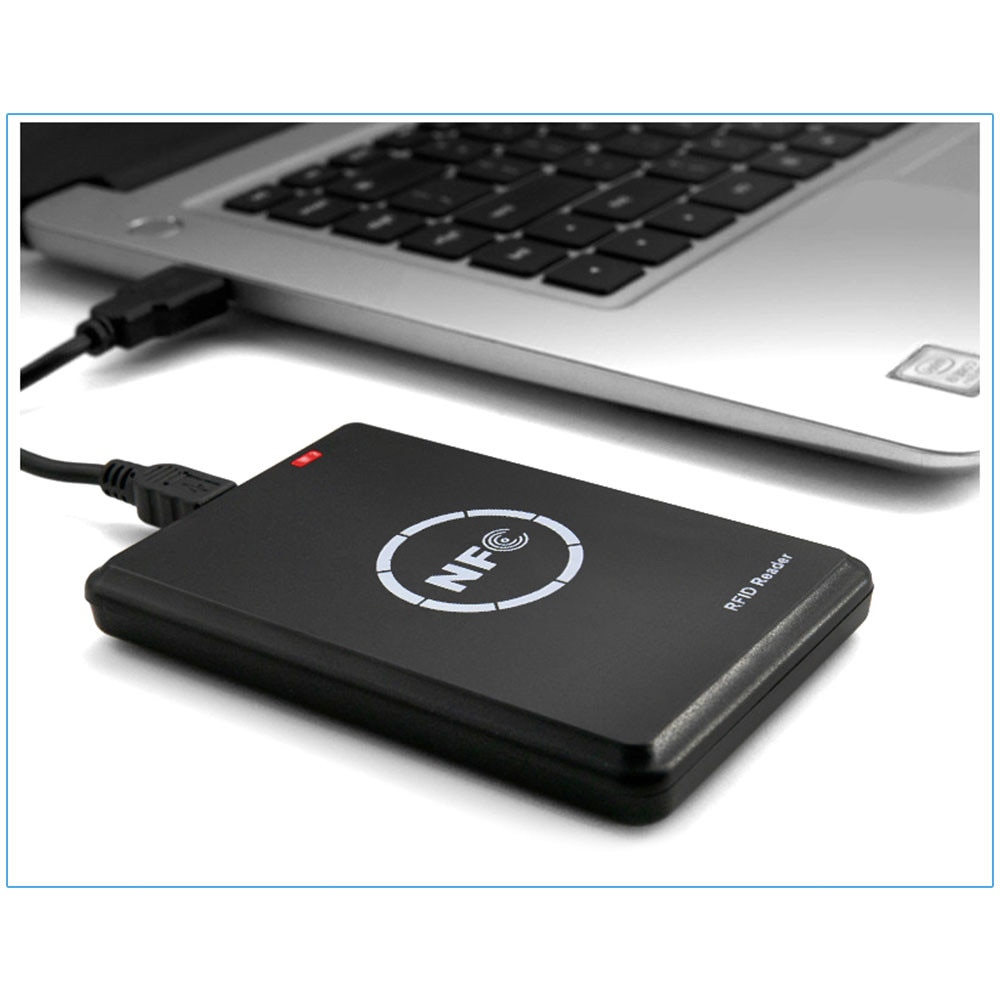

1) Connect the device to your computer with the USB cable.
2) You can find and open the software on your computer.
Read and write ordinary 125KHz RFID card
1. Place the card on the card reader and press “Read” on the software to scan the card.
2. The software will scan and display the card number
3. Place a writable T5577 (125KHz writable chip) on the card reader and press “Write” on the software.
Read and write 13.56MHz IC, IC half encryption card, IC full encryption card
1. Place the card on the card reader and press “Card number” or “Start decoding” on the software.
2. The software will scan and display the card number
3. Place a writable UID (13.56MHz writable chip) on the card reader and press “Write Card” on the software.
Product Details
Light weight body, Mini Design
ABS flame-retardant material casing, small and light, the interior is controlled by high-quality microchip, and the card reading effect is fast.
LED indicator light / buzzer
The LED indicator light is red under standby mode, and it’s green under the card reading status. Built-in buzzer, very convenient for effective prompts.
Anti-slip mat at the bottom
The bottom is made of a sponge mat, and the inside of the sponge is a removable screw.
USB full speed and efficient
1.2m long USB transmission cable, fast response. No need to install the driver, quickly read the card number
Built-in mobile disk with software, plug and play
Connect the RFID reader to your computer with the USB cable, then can find the software
Hot Question:
1) Where can i download the software?
Answer: You can download the software via this link://www.nsccn.com/download/soft/nfc/nfcPro_wbw.exe

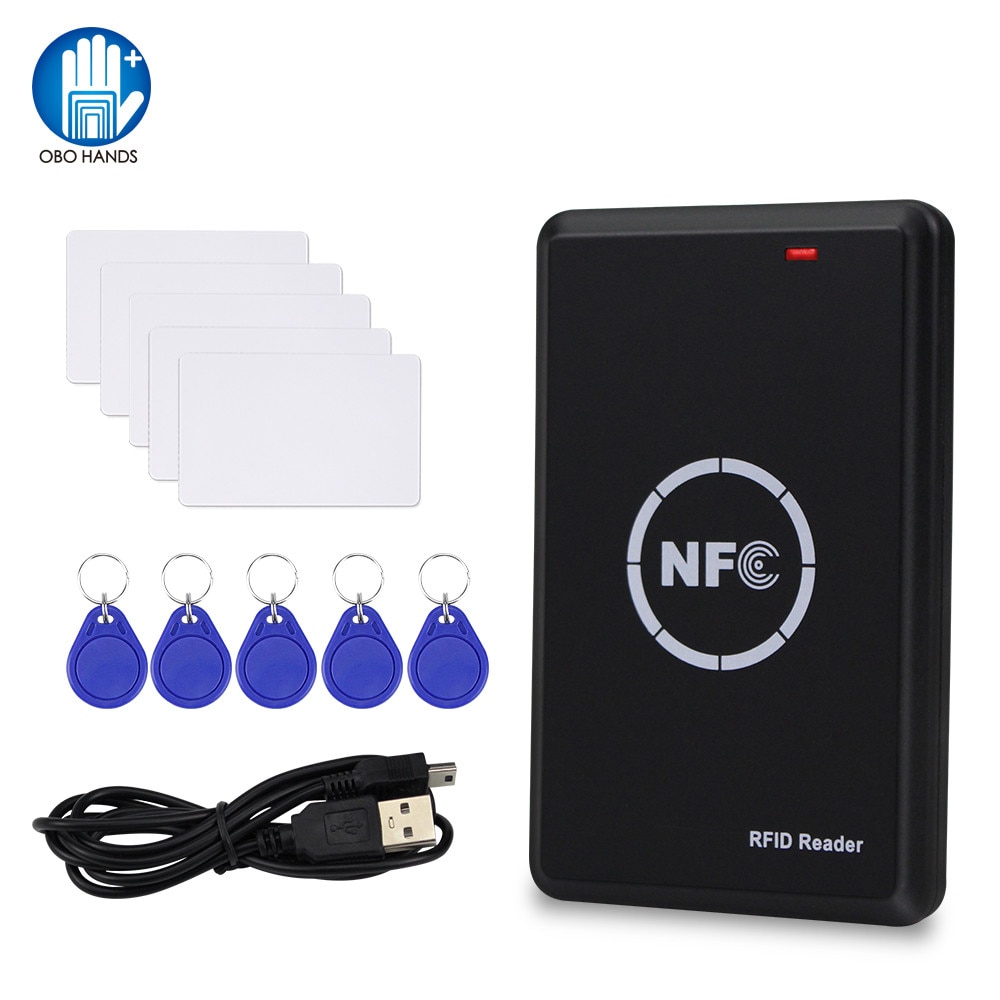

2) Which chip inside in the 5pcs blue keyfobs and 5pcs white cards?
Answer: If you buy the RFID copier + 5pcs UID keyfobs + 5pcs T5577 cards. The 5pcs UID keyfobs is working with 13.56MHz frequency, used to copy the MF 1k card. The 5pcs T5577 cards is working with 125KHz frequency, used to copy the EM4100, TK4100 cards. They are different type card.
3) Why the 5pcs cards in the package read failure?
Answer: Please don’t worry, these 5pcs white cards is T5577 (EM4305) type, they haven no data before write. They will can be read successfully after finished written from your TK4100 or EM4100 type card. Thank you.
AR
EN_US
G***s –
Delivery fast, later will test
H***m –
Fast delivery, works well
A***v –
Mifar classic 1, cloned without problems. I recommend the goods and the store!
M***v –
Everything works, checked on t5577 cards, everything read and copied.
A***n –
All as in the description, but with the other n figured out…
M***l –
connection to computer is very easy, didn’t try it yet
S***B –
At first I could not figure out how it works, it is necessary not just to bring a key or a card, you need to put it on the pad so that the green light Light Light Light Then I’ll press something in the program. I checked on the keys from the intercom and from the wicket, as well as on the bank card. It really works. I have not tried it yet, there are no forms.
B***k –
Works well, could a coded garagesleutel decode and copy!
T***. –
The encrypted card key is also well copied. I actively stop.
K***s –
Exactly as described, arrived very promptly, been using it for some time now without any issues. Software is simple and works fine. One of the key fobs seems to not be working but i do not care, since everything else works just fine. and i’ve been using it now for almost a month having read more than 200 cards and key fobs and written at least 60 cards. Will buy again from this store.
I***v –
Good
Y***v –
The parcel went to Crimean for three weeks. All safe and sound. 13,56 MHz keys need to be stitched exactly in the center of the device in a drawn circle because the power frame is on the PCB in the middle of the device. The 125 kHz keys need to be stitched by placing them in the lower 1/3 of the device because the power frame is placed down the device. I slightly improved the key power by turning the frame closer to the top of the lid and shifting it to exactly the center than it was installed by the manufacturer. On top 3 with duct tape so that the adhesive seal does not stick to the top cover and if that I could safely open the top cover without tearing off the coil. So the device generally works at five plus. All the marking of the chips of the device is blurred so that it is not copied. In general, both 13,56 and 125 kHz keys are sewed without problems. Communication with the computer was established without problems and stable. I’m satisfied.
A***n –
Everything is as usual. Fast and quality. I advise all this store.
A***n –
Reader/writing, with the ability to drive in the desired pens. Em writes, reads, edits with a bang. With MF reads and writes. But do not forget that MF’s crypt is made on the side of the surface.
عميل –
It’s great, it works. There are no problems with simple maps at all, but the coded intercom keys from the developer are deciphered for a really long time.
M***m –
Works, but the house RU does not see the keychains at all. Took it for this. In the commandments I read that someone was working with the House Ru. The delivery is fast.
A***y –
With the help of a windscreen program, he reads and writes keychains of the standard 13MHz and 125kHz.
7***r –
Tried to program the key from the domaphone 13,56 MHz, all the stuff. Delivery no more than a month.
