Camera Parameters

Model: RP-V3/10/20

Sensor: 1/2.8 inch high quality CMOS sensor

Effective Pixels: 2.07 megapixel, 16：9

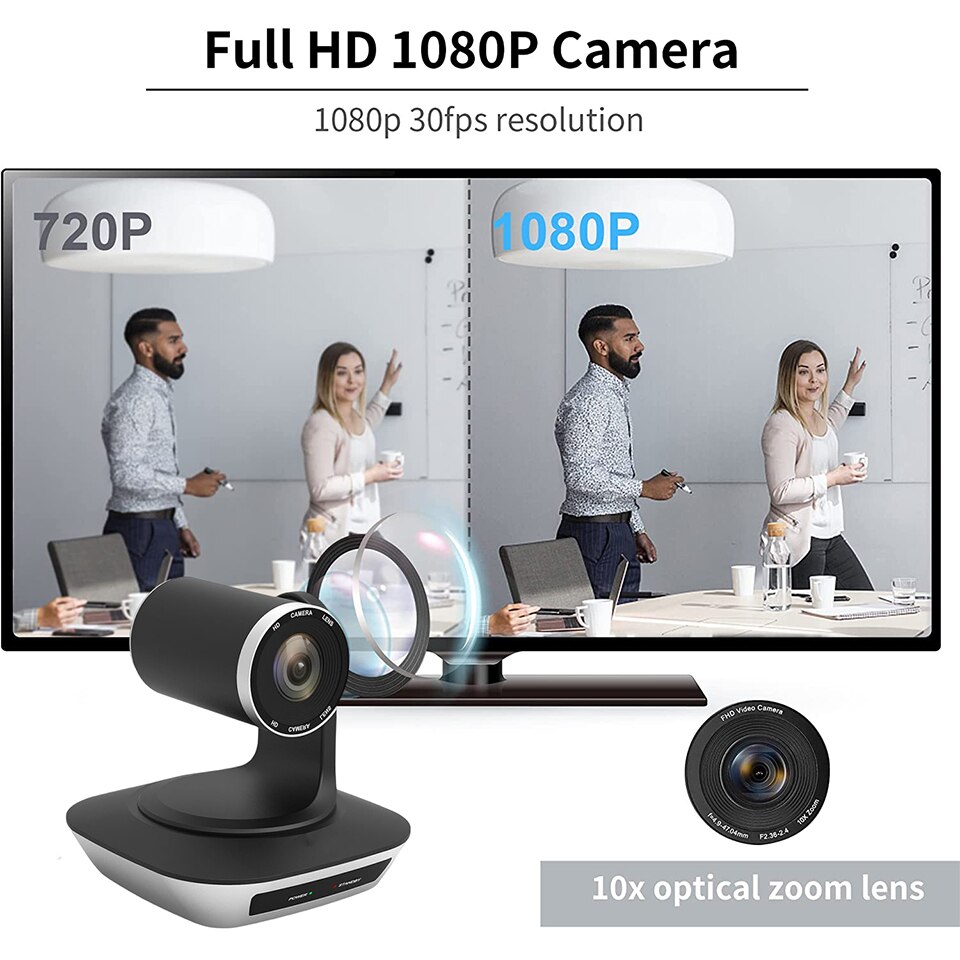

Video Format: 1920×1080P@30 fps/25fps；1280×720P@30fps/25fps；1024×576P@30fps/25fps；960×540P@30fps/25fps；800×448P@30fps/25fps；640×360P@30fps/25fps；320×176P@30fps/25fps,etc

View Angle: 8.8°～ 70°

Focus Length: f=4.34mm～41.66mm

AV: F1.85 – F2.43

Optical Zoom: Prime lens 3x 10X 20x

Minimum Illumination: 0.5 lux （F1.8, AGC ON）

DNR: 2D & 3D

White Balance: Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

Focus: Auto / Manual/ One Push Focus

Exposure: Auto / Manual

BLC: On/Off

Video Adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve

SNR: >55dB

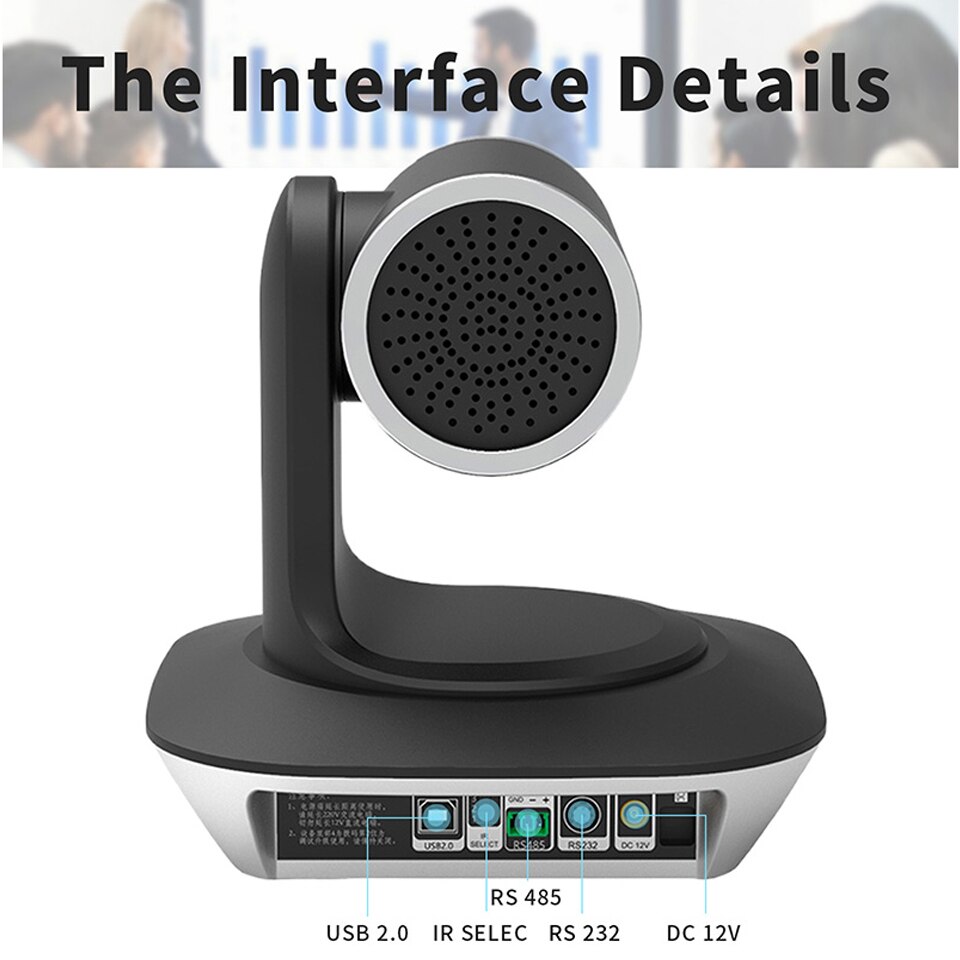

Input/output Interface

Video Output USB2.0, A Type Interface

Video Compression Format MJPG, H.264, H.265

Control Interface RS232 (IN/OUT), RS485

Control Protocol VISCA/Pelco-D/Pelco-P

Power Interface HEC3800 outlet (DC12V)

USB Feature

Operation Systems: Windows 7, Windows8, Windows10, Mac osx, Linux, etc

Video Compression Format: MJPG, H.264, H.265

USB Communication Protocol: UVC

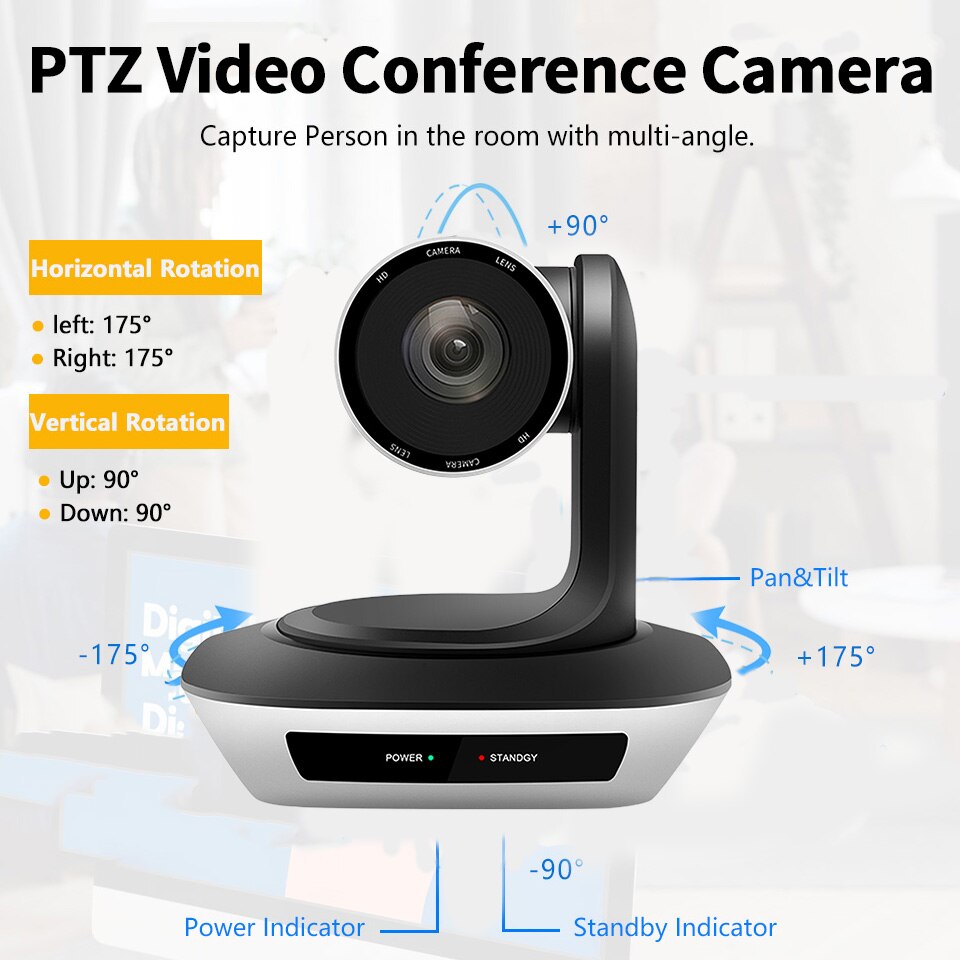

PTZ Parameters

Pan Rotation: -170°～+170°

Tilt Rotation: -30°～+90°

Pan Control Speed: 0.1 ～60°/sec

Tilt Control Speed: 0.1～30°/sec

Preset Speed: Pan: 60°/sec, Tilt: 30°/sec

Preset Number: 255 presets (10 presets via remote control)
