Description
Features:
1. Loader with compact dimensions can easily drive through narrow passages and doors.
2. Retractable undercarriage and dozer blade allow the excavators to be configured for excellent working stability and optimum performance.
3. Powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs.
4. Bucket hoses are well protected within the boom and the cylinder is mounted above the structure.
5. The operator area is spacious and laid out to provide comfort and ease of operation.
6. Excellent engine provides excellent power with minimal fuel use for more productivity per tank.
1. It has excellent work efficiency and cost performance.
2. The standard bulldozer can level the site and backfill the earth to increase the stability of the machine.
3. Simple, small and flexible, easy to transport, can work in small sites, especially suitable for orchards, such as kiwi, vineyards, oranges, navel oranges, digging trenches, fertilizing, and weeding.
4. It has multiple functions of mining, crushing, removing hooks, drilling, and earthwork, and can quickly replace accessories, greatly improving the utilization rate of the machine.
5.standard bucket ,Cummins EPA QSF2.8 engine and Kohler EPA enginre optional.
6.Varta Battery ,floating function , luxury cabin with heater ,220V engine preheat
7.warning light, adjustable steering wheel and seat
bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, Free parts, tool box.Standard with 3 hydraulic lines.
JKL380W Skid Steer Loader | |||
Performance | Bucket capacity | m³ | 0.15 |
maximum lift | kg | 375 | |
Speed of work | km/h | 0-6 | |
preset pressure | Mpa | 17 | |
Gradeability | ° | 30° | |
working weight | kg | 890 | |
Engine | brand | Briggs & Stratton | |
model | 3864 | ||
type | gasoline engine | ||
fuel consumption | L/H | ≤6.7 | |
Start method | Electric start | ||
Options:

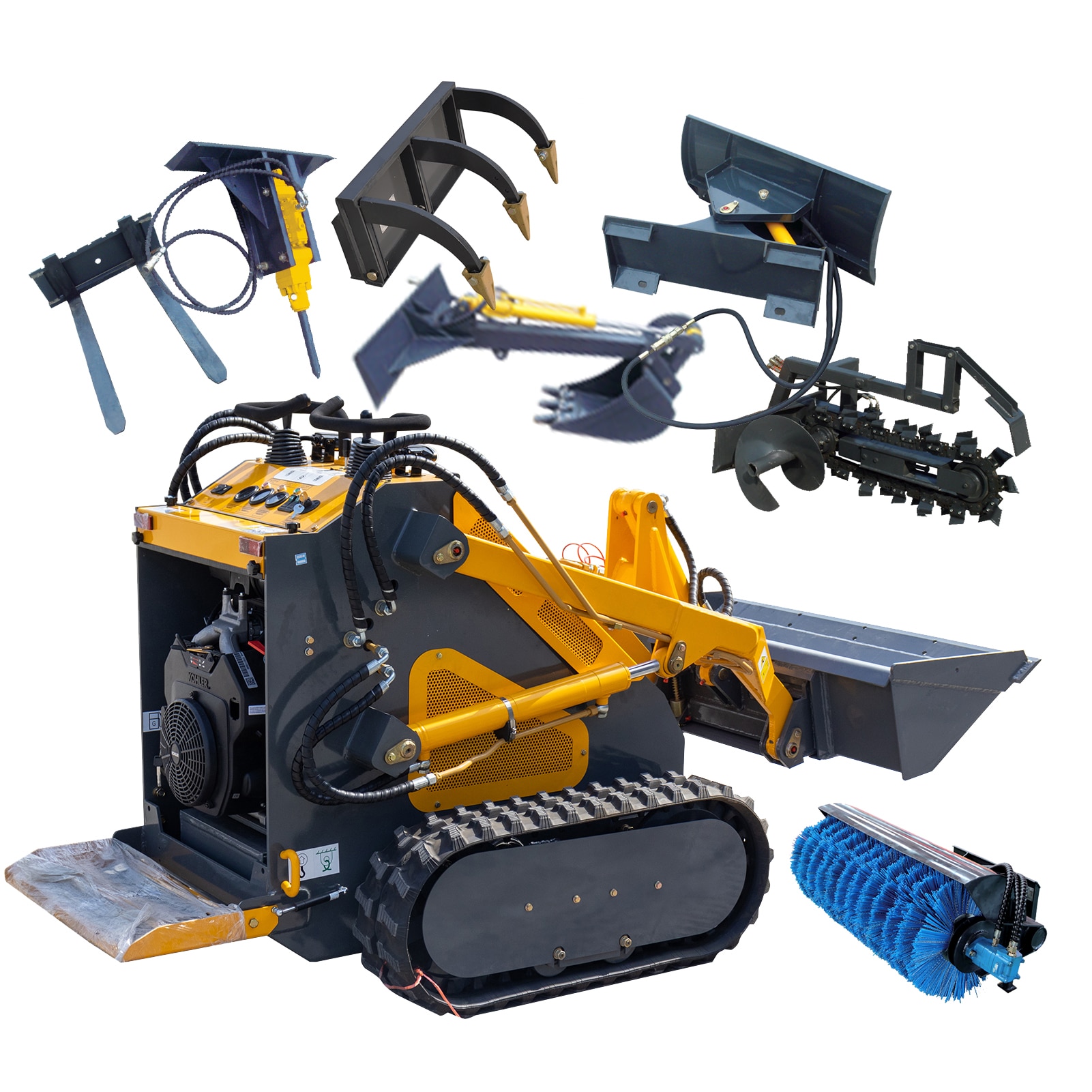

1.optional attachment :Quick hitch ,pallet fork ,4in 1 bucket , closed road sweeper, Grass fork ,snow bucket , snow blade
2.Color and style can be customized.
We Have More Models For You To Choose From：
Model | JKZ-926 |
Machine operating weight | 2700kg |
Bucket capacity | 0.5m³ |
Bucket Rated Loading Weight | 1000kg |
Largest traction | 30KN |
maximum digging force | 41KN |
maximum tilt angle | 30° |
Maximum unloading height | 3000MM |
Maximum dumping distance | 700mm |
Dimensions (mm) | 4700*1760*2650 |
battery capacity | 60A*2 |
air conditioner | Optional |
automatic shift | Standard |
engine model | A498BT1 |
fuel type | diesel fuel |
Bore | 90MM |
maximum torque | 196N.M |
rated power | 36.8KW |
Rotating speed | 2400r/min |
fuel consumption | 4.8L/H |
Model | JKZ-930 |
Machine operating weight | 3700kg |
Bucket capacity | 0.9m³ |
Bucket Rated Loading Weight | 1800kg |
Largest traction | 35kn |
maximum digging force | 45kn |
maximum tilt angle | 30° |
Maximum unloading height | 3200mm |
Maximum dumping distance | 850mm |
Dimensions (mm) | 5300*1850*2650mm |
battery capacity | 60A*2 |
air conditioner | Optional |
automatic shift | Standard |
engine model | YN27GBZ |
fuel type | diesel fuel |
Bore | 90mm |
maximum torque | 206N.M |
rated power | 42kw |
Rotating speed | 2400r/min |
fuel consumption | 5L/h |
Model | JKZ-942 |
Machine operating weight | 5000kg |
Bucket capacity | 1m³ |
Bucket Rated Loading Weight | 1800kg |
Largest traction | 45kn |
maximum digging force | 48kn |
maximum tilt angle | 30° |
Maximum unloading height | 3500mm |
Maximum dumping distance | 900mm |
Dimensions (mm) | 6000*2060*2900mm |
battery capacity | 60A*2 |
air conditioner | Optional |
automatic shift | Standard |
engine model | YN38GBZ |
fuel type | diesel fuel |
Bore | 102mm |
maximum torque | 290N.M |
rated power | 76kw |
Rotating speed | 2400r/min |
fuel consumption | 6L/h |
Our company always pays attention to customer evaluation. The picture below is the unanimous praise of our customers worldwide.
Committed to creating high-quality services, becoming an enterprise trusted by customers, proud of employees, and respected by society.
Realize customer dreams and continue to create maximum value for customers
Our company has more than just a rigorous working attitude! A more pleasant working environment. While the employees of SDJK Machinery Company continue to serve customers, they are also very happy to have parties and dinners. Our team, like our factory, is very large and advocates the combination of work and rest
For transportation, we have three methods: sea, air, and land, and support multiple payment and multiple transportation methods. You can receive this mini excavator you like at the port, and of course you can also receive the mini excavator at your doorstep. (The cost is higher, not recommended), we guarantee that we will not charge any intermediate fees and extra fees that exceed the shipping cost, we just want you to get this favorite mini excavator faster and more preferentially! !
FAQ
1. Why choose us?
As a manufacturer,SDJK Machinery is not only committed to providing products with high quality, high performance and competitive prices, but also providing on-time delivery and comprehensive 7/24 after-sales service.
2. What is the product range of our factory?
SDJK Machinery is a large-scale machinery manufacturing enterprise that mainly supplies wheel loaders and related accessories. We can also customize non-standard products according to customer requirements.
4. What certificate do we have?
All products comply with the ISO9001 quality system and have obtained CE certificates. If needed, EPA approval will be obtained.
5. What is our delivery time?
It usually takes 15 to 30 days after receiving your deposit. Regarding standard products, we always have stock and can ship them immediately. But customized products require more time, depending on your order requirements.
6. Can we provide OEM service?
SDJK Machinery can provide customized products according to customer requirements, both OEM and ODM.
