Little Fatty:

1. Product description:
This product belongs to the Nintendo Switch Pro wireless (bluetooth) controller, which is connected with the Switch host and supports NFC functions.

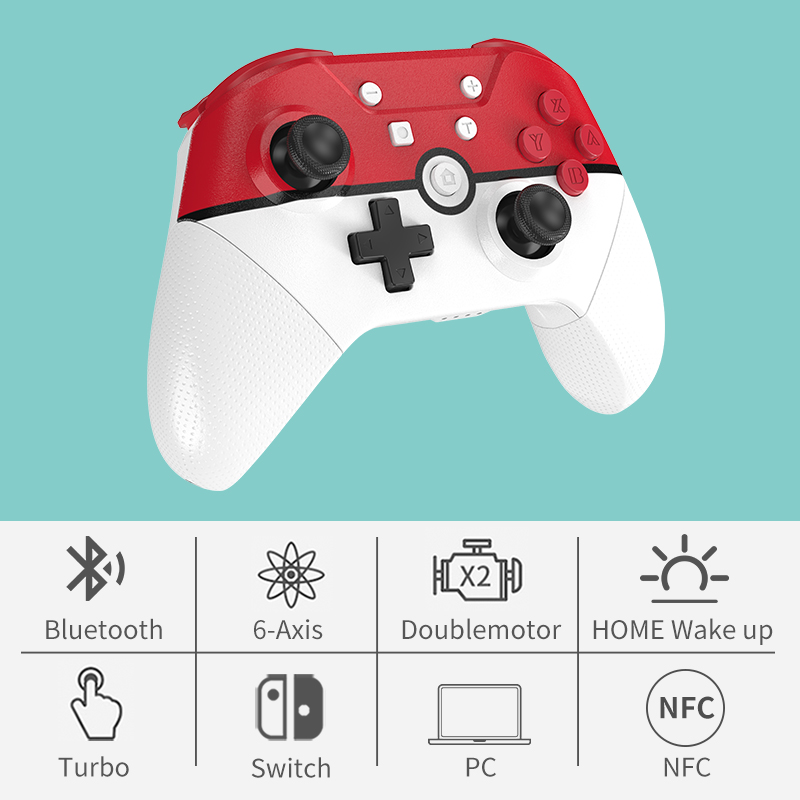

2. Product features:
(1)All keys and corresponding functions of the original Switch controller, increase the function of adjusting the continuous speed and motor vibration strength;
(2) 4 green LED status indicators and 1 orange LED charging indicator;
(3) 20 function keys, “docking” key is convenient for the first pairing and shutdown;
(4) Built-in dual-motor, high-precision 3D joysticks;
(5) With 6-axis gyroscope;
(6) Compatible with PC host (support X_input mode).
3. Function description:
(1) The controller connects to the switch host via USB cable. Unplug the USB cable and press any key to automatically connect the switch host via bluetooth;
(2) Standby state, long press the “docking” button for 3 seconds, the controller will enter the matching state with the host bluetooth, led1-4 state is running water light on; Boot-Up State, short press the “docking” key, the controller will be standby;
(3) The switch host is out of the screen, press the “HOME” button of the controller to wake up the host;
(4) The controller does not support the upgrade function of the switch host, and the software update of the controller requires downloading our program and upgrading by connecting to the PC;
(5) Turbo function: hold down any key of ABXY, then press the “Turbo” key, and the corresponding key will open the repeat mode.Hold down the “Turbo” key of the controller, and perform the right 3D upward and downward operation at the same time, adjust the speed of continuous firing.
(6) The controller supports other key awakening functions except L3, R3 and TURBO keys. After awakening, the controller enters the state of back connection, and led1-4 is the state of running water lamp;Long press the “docking” button for 3 seconds to start the machine and enter the matching state, led 1-4 running lights flashes, open the matching interface of the host, the matching is successful, and the corresponding channel light allocated by the host is long and bright;If the match fails, the controller will automatically standby after 60 seconds.
(7) The controller is equipped with vibration and vibration intensity adjustment functions. In the “Settings” option of the SWITCH host, the vibration function of the controller motor can be turned on or off manually.When the controller is connected, on the interface of “search controller” of the SWITCH host, hold down the “Turbo” key of the controller and conduct upward and downward operation of the left 3D at the same time, which can enhance and reduce the vibration intensity of the motor. There are four gears of 100%-70%-30%-0% for the user to choose and adjust.

4.Calibrate Motion Controls and 3D joysticks
1. Calibrate Motion Controls
A. After the Switch host and Controllers are connected successfully, return to the main menu of the screen.
B. Click “System Settings” —–“Controllers and Sensors” —- “Calibrate Motion Controls” —- “Calibrate Controllers”
C. Place the controller on a flat, stable surface with the joystick facing upward. Hold “-“ or “+” on the controller you want to calibrate.
2. Calibrate 3D joysticks
A. After the Switch host and Controllers are connected successfully, return to the main menu of the screen
B. Click “System Settings” — “Controllers and Sensors” —- “Calibrate Control Joysticks” and press down on the joystick that you want to calibrate.
C. Press X to recalibrate and Press A to calibrate a different controller.
D. Move the joystick toward and release it when the color of the triangle changes.
E. Calibration complete.

5. The charging
Plug in the adapter, the orange light long on, full charge, orange light off.

6. Low power alarm
When the battery voltage of the controller is lower than 3.5v, the light in the corresponding channel flashes to indicate that the controller is low and needs to be charged.

7. Standby
When the controller is in the starting state, press the ” docking ” button to standby the controller;
When the controller in the matching state, 60 seconds after the code can not be automatically standby;

8. Controller display name
Pro Controller

9. Reset function
When the controller is abnormal, it can be reset by pressing the docking key

10. Receiving distance
The effective receiving distance of the controller is within 10M.

11. Wireless connection instructions
(1) After the Switch host is started, click the icon in the blank of the screen to enter the main menu
(1) Open the “contrellers” item of the switch host
(2) Select “change grip/order” to connect to the controller
(3) Long press the ” docking ” button of the controller for 3 seconds to enter pairing, and 4 LED running lights flash. After connecting to the console, the channel light of the controller is alwasys bright.

12. Vibration setting in SWITCH console: ON/OFF

Product power parameters:
Sleep current: less than 2uA;
Pairing current: less than 20mA;
Operating current (without vibration) : less than 20mA.
Power supply: built-in polymer
Battery life: 8-10 hours
Battery capacity: 500MAH
Charging time: 3 hours
Charging voltage: DC5V
Charging current: 200MA
What’s in the package？
Handle*1
Type-c*1
Operating Instructions *1
