Description
What in the package?
motherboard+cooler adapter+SATA cable
Notice:
1: Due to the frequent replacement of some product packages, the goods you receive may not be exactly the same as the pictures. Page images and descriptions are for reference only. Please refer to the actual object you received. At the same time, we will try our best to update the pictures as soon as possible, which will inconvenience you!
2:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
All products are tested before shipping?
Yes, store has 3 technical teams for testing every working days, so we can 100% guarantee that all our products are working good before being sent out from our warehouse.

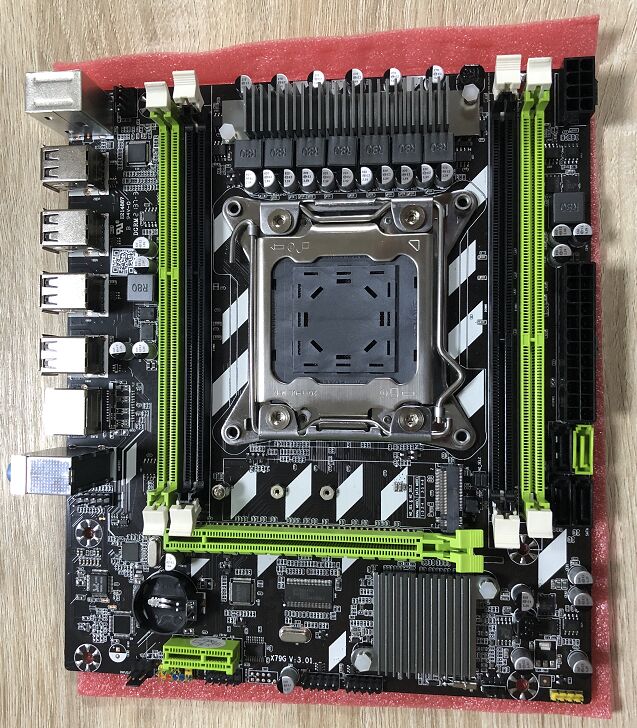

Motherboard:
Model : Atermiter
Condition: Full new
CPU socket: LGA 2011
CPU supported: Intel series with LGA 2011 socket
(Xeon E5 2620/2630/2640/2650/2660/2665/2670/2680/2690/ )
Memory socket: 4* DDR3
Max memory supported: 4*16G DDR3
Memory type supported: non-ecc/reg ecc/ecc
Integrated video card: No
Motherboard weight(including package): 1.1kg or so
Note:
1:If you use i7 series processors, pls do not use REG ECC simultaneously, since they are incompatible with each other.
2:The motherboard chips from difference band chips,because of the different product batches,we will send the goods by random,please refer to the actual product.
3:this planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50°.
Due to different production batch, X79 motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc. Our aim is to gradually make it more powerful.
note:
North bridge : Intel Sandy Bridge-EP IMC
South bridge: Intel Panther point X79 etc.; Intel Cougar Point C204/C206 etc.
CPU supported: Intel series with LGA 2011 socket
(Xeon E5 2620/2630/2640/2650/2660/2665/2670/2680/2690; )
Memory socket: 4* DDR3
Max memory supported: 4*16G DDR3
Memory type supported: non-ecc/reg ecc/ecc
The north bridge chip is Intel Sandy Bridge-EP and integrated with the motherboard, users can test it with softwares, the south bridge chip is not the one that defines what the motherboard is, that’s why it could range from B75 to Q75, or from C204 to C206, this is technology common sense. South bridge chip is in charge of communication of I/O main line, such as PCI mainline, USB, LAN, ATA, SATA, Audio controller, keyboard controller etc. These are relatively stable, so different version of motherboard may have the same south bridge chip, the difference is the main chip, namely, north bridge chip.
